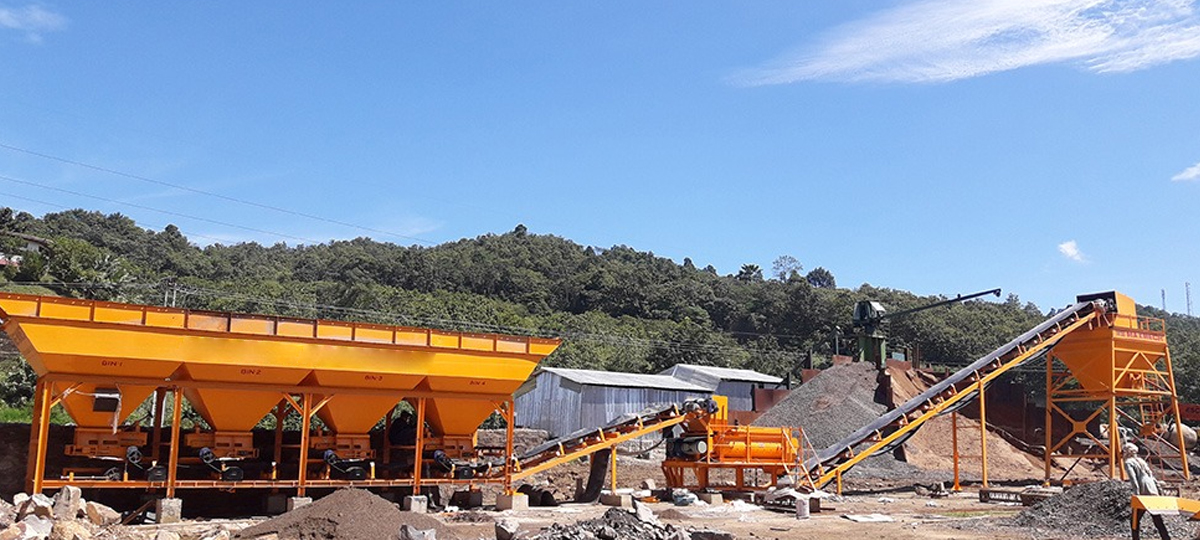

Wet Mix Macadam Plant

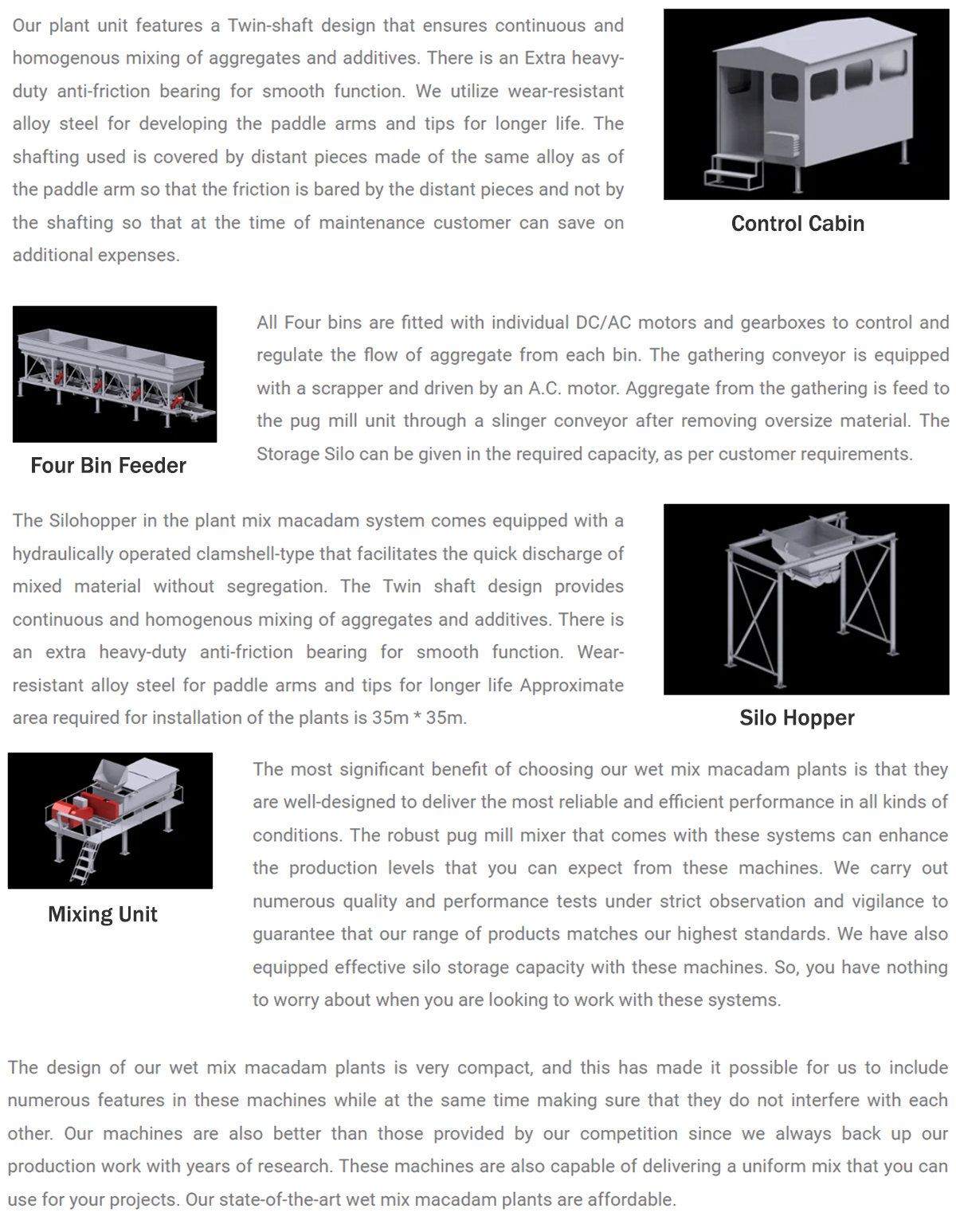

Saikrupa Roadtech Pvt. Ltd. is a leading WMM plant manufacturer in India, and our WMM plants are used extensively in all parts of the country. The Saikrupa Roadtech Pvt. Ltd. brand wet mix macadam plant serves as a benchmark in this type of plant manufactured anywhere in India due to the technology that Saikrupa Roadtech Pvt. Ltd. has been using for a long time while catering to customer demands. Our wet mix macadam plant-built quality is supreme that the brand has been providing throughout the years. All the Four bins in our wet mix macadam (WMM) machines are fitted with individual AC motors and gearboxes to control and regulate the flow of aggregate from each bin.
The gathering conveyor is equipped with a scrapper and driven by an AC motor. Aggregate from the gathering is feed to the pug mill unit through a slinger conveyor after removing oversize material, done through the help of a primary vibrating screen. The Storage Silo is obtainable in the required capacity, as per customer requirements. In our macadam plant units, the silo hopper with hydraulically operated clamshell-type facilitates the quick discharge of mixed material without segregation.
Technical Specification of Wet Mix Macadam Plant
| MODEL | WMM-100 | WMM-150 | WMM-200 | WMM-250 |
|---|---|---|---|---|
| PLANT CAPACITY (TPH) | 100 | 150 | 200 | 250 |
| WATER TANK (CAPACITY IN LITRE) | 10000 | 10000 | 15000 | 20000 |
| SILO HOPPER CAPACITY (kg) | 2000 | 3000 | 5000 | 5000 |
| FOUR BIN FEEDER CAPACITY (kg) | 32000 | 44000 | 44000 | 44000 |
| VIBRATING SCREEN (SCREENING AREA- m2) | 1.2 | |||
| PUGMILL VOLUME | 1.5m³ | 1.8m³ | 1.8m³ | 2.1m³ |
| AREA REQUIRED FOR INSTALLATION (m) | 35 X 35 | 36 X 36 | 38 X 38 | 40 X 40 |
| STANDARD POWER REQUIRED TOTAL (KW) | 44.5 | 53.88 | 53.88 | 68.14 |
| GEAR DETAIL | ||||
| AUXILIARY CONVEYOR | Helical Type | |||
| GATHERING CONVEYOR | Helical Type | |||
| SLINGER CONVEYOR | Helical Type | |||
| LOADOUT CONVEYOR | Helical Type | |||
| MIXING UNIT | SNU Worm Type | |||
| OPTIONAL FEATURES | ||||
| EMULSION TANK (CAPACITY IN LITRE) | 10000/20000 | |||
| CEMENT SILO (CAPACITY IN kg) | 2000/5000 | |||
| STORAGE SILO (CAPACITY IN kg) | 10000/15000/20000 | |||
