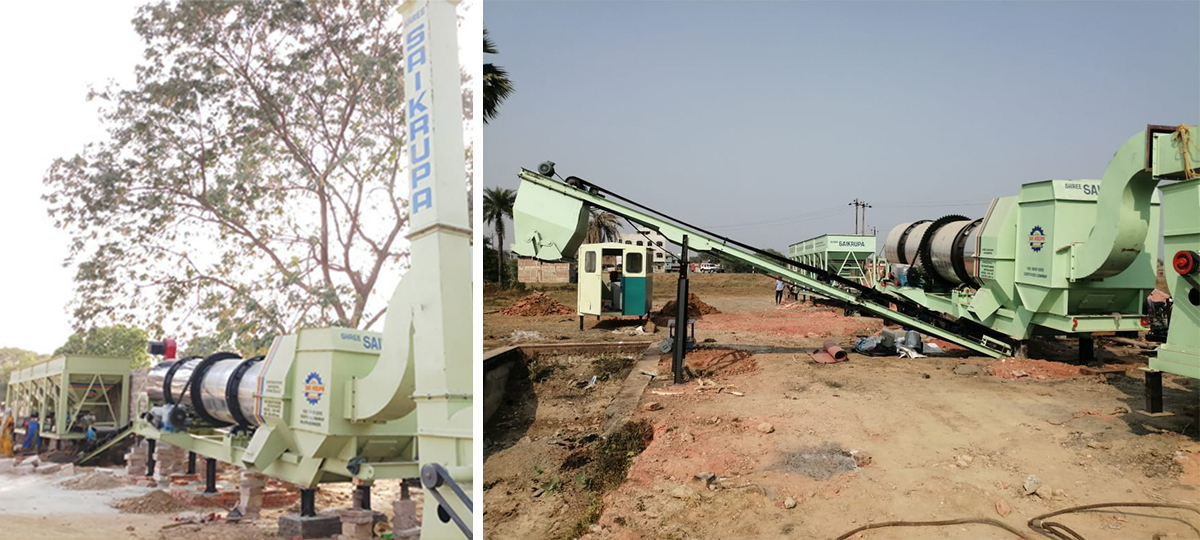

Drum Mix Plant
Saikrupa Roadtech Pvt. Ltd. is a renowned asphalt drum mix plant manufacturer based in Gujarat. Our hot mix plant units are designed to be stable and sturdy enough to manage large-scale production work. The Saikrupa Roadtech Pvt. Ltd. brand drum mix plants have been a dominant product for the company in the market before the introduction of the batch mix plants by the company due to sturdy built quality and great output performance and low maintenance with higher efficiency benefitting the customer in numerous ways due to which the customers have shown us so much support for our products in the past and still are believing in our machines due to the top-quality consistency. Being a skilled drum mix plant manufacturer, we make sure that the flight pattern of the drum has been specially designed through years of research and development so that the customers can reap the rewards of our design in their production.
Technical Specification of Drum Mix Plant
| MODEL | DM – 45 | DM – 50 | DM – 60 |
| PLANT CAPACITY (TPH)* | 45- 60 | 60 – 90 | 90 – 120 |
| DIMENSION OF THERMO DRUM UNIT (LXWXH) (m) | 10.60 X 2.50 X 2.70 | 11.80 X 2.70 X 2.80 | 13.90 X 2.90 X 3.10 |
| BURNER SIZE ( l/h) | 200 – 250 | 300 – 350 | 550 – 600 |
| BURNER TYPE | Hi – Lo Type Pressure Jet | Hi – Lo Type Pressure Jet | Hi – Lo Type Pressure Jet |
| FUEL TYPE | HSD, LDO | HSD, LDO | HSD, LDO |
| EXHAUSTER UNIT (CFM) | 10500 | 14500 | 15500 |
| DUST COLLECTOR | 15 Cones | 20 Cones | 24 Cones |
| DRUM DIAMETER (m) | 01.20 | 01.50 | 01.80 |
| FEEDER CAPACITY ( kg) | 32000 | 44000 | 44000 |
| BITUMEN TANK (CAPACITY IN LITER ) | 15000 / 20000 / 30000 | ||
| FILLER CAPACITY (kg) | 1000 | ||
| POWER REQUIRED TOTAL (KW) | 79 | 94.38 | 115.76 |
| TOTAL AREA REQUIRED FOR INSTALLATION | 35 X 35 m | 38 X 38 m | 45 X 45 m |
| GEAR DETAIL | |||
| AUXILIARY CONVEYOR | Helical Type | ||
| GATHERING CONVEYOR | Helical Type | ||
| SLINGER CONVEYOR | Helical Type | ||
| LOADOUT CONVEYOR | Helical Type | ||
| SCREW CONVEYOR | NU Worm Type | ||
| DRUM DRIVE UNIT | SNU Worm Type | ||
| BITUMEN PUMP | Gear Type | ||
| * 3% moisture content in cold aggregates, 38OC atmospheric temprature, aggregated density of 1.6 tons /m3, mean sea level, | |||
